Bess Solar Battery Energy Storage System Container Projects 500KWh 1mw 2mwh 3mwh 5mwh ESS BESS Energy Storage System

Name: Bess Solar Battery Energy Storage System Container Projects 500KWh 1mw 2mwh 3mwh 5mwh ESS BESS Energy Storage System
Brand: COENG
Price: 1 USD

Buy cheap Bess Solar Battery Energy Storage System Container Projects 500KWh 1mw 2mwh 3mwh 5mwh ESS BESS Energy Storage System product

Brand Name : COENG

Model Number : EnerCube3.0

Place of Origin : China

Payment Terms : MoneyGram,Western Union,T/T,D/A,L/C,D/P

ESS container : 10ft/20ft/40ft

Battery Type : LiFePO4

Cooling : Air Cooling

Technical Support : Send Engineer Team

Contact Now

Bess Solar Battery Energy Storage System Container Projects 500KWh 1mw 2mwh 3mwh 5mwh ESS BESS Energy Storage System

Product Description:

EnerCube3.0 Container Battery Energy Storage System adopts an All-in-One modular design, integrating the battery PACK, intelligent energy storage converter (PCS), power distribution unit (PDU), automatic fire extinguishing system (FFS), and temperature control system (TcS), intelligent monitoring system (IMS), etc.are integrated into one, and the 20HQ standard container design is adopted, which saves application space and facilitates transportation, hoisting, installation and maintenance.

Product parameters:

Type	P400C860	P500C1075	P600C1290	P700C1505	P800C1720
DC side parameters
Cell type &capacity	LiFePO₄-280Ah
Battery module type	1P20S
System configuration	4*1P240S	5*1P240S	6*1P240S	7*1P240S	8*1P240S
Capacity(BOL)	860kWh	1075kWh	1290kWh	1505kWh	1720kWh
AC side parameters
Grid type	3P4W+PE
Rated output power	400kW	500kW	600kW	700kW	800kW
Rated voltage	AC400V
Rated frequency	50/60(±5)Hz
Maximum output current	577A	722A	866A	1010A	1155A
Harmonics	<3%(@rated power)
Overload capacity	110%,10mins;120%,60s
General parameters
Isolation transformer	No

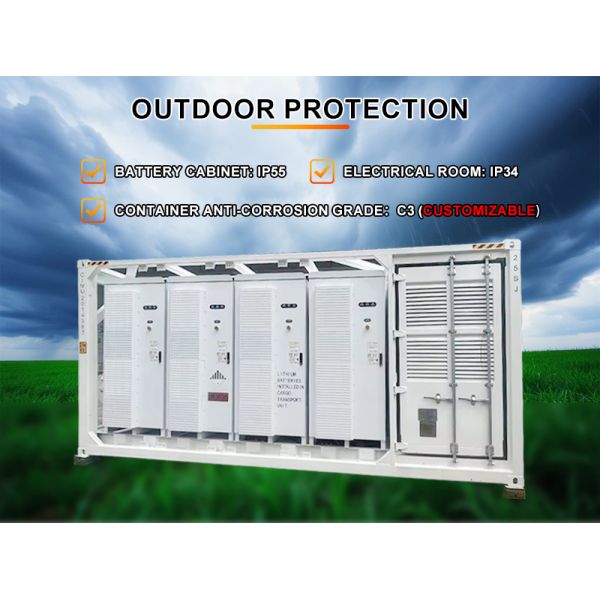

Protection level	Outdoor installation (Battery cabinet:IP55,Electrical room:IP34)
Container anti-corrosion grade	C3
Operation temperature*	-20℃~50℃
Relative humidity	0~95%(non-condensing)
Permissible altitude**	<2000m
Cooling method	Battery cabinet:HVAC,Electrical room:forced air cooling
Fire fighting system	FAS &FM200/Novec1230
Noise emission	≤75dB
Dimension (WDH)	20HQ container (6058mm2438mm2896mm)
Maximum weight	24500kg
Communication interface	Ethernet
Communication protocol	Modbus TCP/IP
Warranty	5 years (can be extended to 10 years)Warranty
Certification	System:UN3536,LVD,EMC,RoHS Cell:IEC62619,UL1973,UL9540A PACK:UN38.3 PCS:G99,EN50549,AS4777.2,VDE4105

Bess Solar Battery Energy Storage System Container Projects 500KWh 1mw 2mwh 3mwh 5mwh ESS BESS Energy Storage System

Market Research Highlights by Country/Region:

1. Germany (Europe)

Background: A leader in renewable energy transition with strong grid stability demands and high technical standards.
Findings:

Positioning: Seen as a premium grid-support and commercial storage solution.
Sales Potential: High in industrial parks and renewable hybrid projects.
Service Focus: Remote monitoring preference, certified local technicians for maintenance.
Key Concerns: Compliance with German grid codes (VDE-AR-N 4105), winter performance below -10°C.

2. Japan (Asia)

Background: Energy-dense islands with frequent natural disasters; focus on resilience and peak shaving.
Findings:

Positioning: Emergency backup power and solar integration for factories.
Sales Potential: Strong in Hokkaido and Tohoku regions.
Service Focus: Demand for Japanese-language monitoring interface and rapid onsite support.
Key Concerns: Seismic resistance certification, humidity tolerance in coastal areas.

3. Saudi Arabia (Middle East)

Background:** Ambitious renewable targets under Vision 2030; extreme heat conditions.
Findings:

Positioning: Ideal for solar+storage hybrid plants and off-grid industrial applications.
Sales Potential: High in NEOM and Red Sea projects.
Service Focus: 24/7 support readiness, dust and heat adaptation services.
Key Concerns: Cooling efficiency above 45°C, warranty extension to 10+ years.
